Intel i7 8750H i5 10200H/10300H Gaming Mini PC Triple Display Dual M.2 SSD NVME

Featuring Intel's i7 8750H and i5 10200H/10300H processors, this elegant Gaming Mini PC boasts a triple-display setup, plus Dual M.2 SSD NVME storage, for an unrivaled gaming and office experience. Product Highlight: -Support Windows 11/10, Linux, Ubuntu OS, and more; -Fashion creative craft design with shiny LED logo, DIY customized...
Memory Capacity
CPU
Hard Drive Capacity
-
+
₱29,019.99

Mini Computer


Featuring Intel's i7 8750H and i5 10200H/10300H processors, this elegant Gaming Mini PC boasts a triple-display setup, plus Dual M.2 SSD NVME storage, for an unrivaled gaming and office experience.


Product Highlight:
-Support Windows 11/10, Linux, Ubuntu OS, and more;
-Fashion creative craft design with shiny LED logo, DIY customized for bulk order;
-Advanced intel core processor, assure more powerful performance for gaming, office, drawing;
-Advanced intel Iris Xe graphics on i7 1165G7, performance match to NVIDIA GeForce MX350 dedicated graphic card;
-2xSODIMM DDR4 ram slot support up to 64GB large memory;
-Support 2*M.2 2280 NVMe/PCIe3.0x4 SSD(one also support M.2 SATA);
-1*Intel Gigabit Ethernet Lan+M.2 2230 2.4G/5G Dual band AC(AX) WiFi/BT4.x;
-1*HDMI, 1*DP, 1*Type-C support 3x4K display.


Specification:
CPU
Intel Core i9 10880H/10870H/i5 10300H/i9 9880H/i7 8750H/I7 1165G7
Memory
2 x SO-DIMM DDR4 slot, up to 64GB
Dual Channel, DDR4-2666/2400
BOIS
Support PXE,RTC,Wake on LAN,Auto power on etc
OS
Windows11/10/Linux
PXE
YES
Network
1 x RJ45 Lan Gigabit Ethernet Controller, 1 Intel I219
Video
Intel UHD Graphics /Xe Graphics (depend on cpu)
Input/output port
Switch
1 x Power On/Off Switch
Power
1 x 19V 4.74A DC In
USB
3x USB 3.0 , 4 x USB 2.0 ,
Display
1 x HDMI ,1 x DP,1xType-C
LAN
1 x RJ45 Lan
Audio
1xearphone/1x microphone
Other port
1x TF Card
Storage

M.2
2 x M.2 NVME (One supports M.2 sata)
Wi-Fi

Module
1 x M.2 Wi-Fi / BT Module
Antenna
Inside m.2 Wifi & BT Comb
Power and Working Environment
Intput
12V~19V
Operating Temperature
0/+70 Centigrade (32~140°F)
Storage Temperature
-20/+80 Centigrade (-68~176°F)
Relative Humidity
10%~95% (non-condensing)

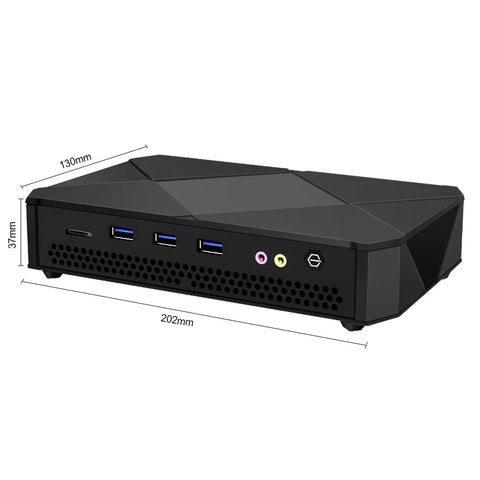

Product Dimension & Details
Size
202 x 130 x 37mm
Weight
Net 0.8 kg, Gross 2.0kg
Shell
black color Aluminum + ABS
Cooling Mode
Mini cooling fan design
Package Content

Standard
1xMini PC, 1xPower Adapter, 1xPower Cord, 1xScrews Bag, 1xSATA power & data cables
Optional
1xUser Manual
Material
Aluminum + ABS

CPU Reference:
Processors
Cores & Threads
Cache
Base Frequency
Max Turbo Frequency
Graphics
Core i9-10980HK
8 cores, 16 threads
16M
2.40
GHz
5.30 GHz
Intel UHD Graphics 630 350MHz-1.25GHz
Core i9-10880H
8 cores, 16 threads
16M
2.30 GHz
5.10 GHz
Intel UHD Graphics 630 350MHz-1.25GHz
Core i7-10870H
8 cores, 16 threads
16M
2.20 GHz
5.00 GHz
Intel UHD Graphics 630 350MHz-1.20GHz
Core i9-9880H
8 cores, 16 threads
16M
2.30 GHz
4.80 GHz
Intel UHD Graphics 630 350MHz-1.20GHz
Core i7 8750H
6 cores, 12threads
9M
2.2GHz
4.10GHz
Intel UHD Graphics 630 350MHz-1.10GHz
Core I5 10200H/10300H
4cores, 8threads
8M
2.5GHz
4.5GHz
Intel UHD Graphics 350MHz-1.05GHz
Core i7-1165G7
4cores, 8threads
12M
2.8GHz
4.7GHz
Intel Iris xe Graphics 1.30GHz
Core i7-11800H
8 cores, 16 threads
24M
2.3GHz
4.6GHz
Intel UHD Graphics
Core i9-11900H
8 cores, 16 threads
16M
3.5GHz
5.3GHz
Intel UHD Graphics 750 1.30GHz
