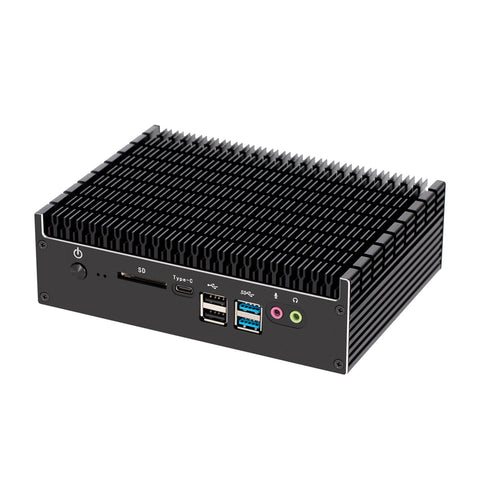

10th gen Fanless Mini PC Celeron 4205U i7 10510u i5 10210u NVME SSD SATA Home Office Computer Type-C HD DP 2 LAN

This 10th gen Fanless Mini PC features the Intel Celeron 4205U, i7 10510u, and i5 10210u processors, as well as NVME and SATA SSDs, Type-C HD video output, and dual LAN ports.   Feature Model:MN-WG1 Dimension:168mm(L)x128mm(W)x40mm(H) CPU: Intel Celeron 4205U / i5 10210U/i7 10510U GPU: UHD630 Graphics Ram: 2 x...
Memory Capacity
CPU
Hard Drive Capacity
-
+
₱28,364.99

Mini Computer


This 10th gen Fanless Mini PC features the Intel Celeron 4205U, i7 10510u, and i5 10210u processors, as well as NVME and SATA SSDs, Type-C HD video output, and dual LAN ports.


Feature
Model:MN-WG1
Dimension:168mm(L)x128mm(W)x40mm(H)
CPU: Intel Celeron 4205U / i5 10210U/i7 10510U
GPU: UHD630 Graphics
Ram: 2 x SoDimm DDR4 slot
SSD: Support m.2 NVME and SATA SSD
HDD: Support 2.5inch 7mm HDD
WiFi: AC Wifi with Bluetooth
RJ45: 2x100/1000M LAN
Front I/O:1xPower 1x SD card reader slot, 2 x USB 3.0 2x USB 2.0,1xMic in/out , 1xType-C
Rear I/O: 2 x USB 3.0, 1 x DP, 1 x HDMI 2.0, 2 x RJ45, 1 x DC in, 1xRS232 COM
OS: Windows 10/windows 11
Power:19V 3.42A


Specification
Basic Information:
CPU
Intel Core i7-10510U/i5 10210u/i7 8550u/i5 8265u /Celeron 5205u
Motherboard
120 x 120mm customized size
Memory
2 x SO-DDR4 SDRAM Slot, up to 64GB
Dual Channel, DDR4 2133/2400 260pin
OS
Windows 10/Linux/Ubuntu etc.
PXE
Yes
Network
Onboard RTL8111 PCI-E Gigabit Ethernet NIC
10/100/1000 Base-T LAN
Video
Intel® UHD Graphics
Input/output port
Switch
1 x Power On/Off Switch
Power
1 x 19V DC In
LED
1 x LED
USB
4 x USB3.0, 2 x USB2.0
USB-C
1 x Type-C
Display
1 x DP1.4, 1 x HDMI2.0a supports dual 4K@60Hz, HDR
LAN
2x RJ45 Giga LAN
Audio
1 x MIC ,1x SPK
COM
1x COM RS232
others
1x SD Card reader
Storage
M.2
1 x M.2 22*80 SSD for NVMe/SATA3.0
SATA
1 x SATA3.0 slot for 7.0mm SATA HDD/SSD
Wi-Fi
Module
1 x M.2 NGFF 2230 slot for Wi-Fi module
Antenna
2 x inner RF cable
Power and Working Environment
Input
DC100-240V AC/50-60Hz
Output
DC 12V -19V ,Recommend 19v 3.42A
Operating Temperature
0/70 Centigrade
Storage Temperature
-20/+80 Centigrade
Relative Humidity
0%~90% (non-condensing)
Product Dimension & Details
Size
168*128*40mm
Weight
Net 0.8kg, Gross 1.5kg
Shell
Brushed Black color aluminum alloy
Functions
Support PXE, AWAL, RTC
Package Content
Standard
1xMini PC, 1xPower Adapter, 1xPower Cord, Wi-Fi, 1xHDMI cable
