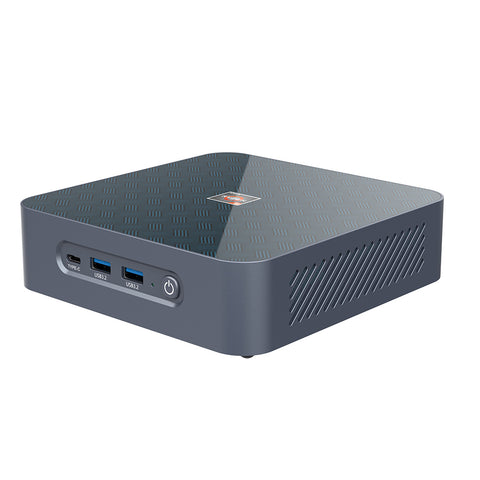

AMD R9 5900HX Mini Gaming Computers
₱33,180.99
Nonstop gaming with AMD R9 5900HX Mini PCs-8 Cores, 3.3GHz, DDR4, PCIE, HD, DP, Type-C, WIFI 6, a powerhouse of gaming tech in a tiny NUC Desktop. Take on any challenge! Product Description: PRODUCT HIGHLIGHT： - Onboard high-end AMD Ryzen 5000 series 7nm Processor with powerful computing performance.-...
Nonstop gaming with AMD R9 5900HX Mini PCs-8 Cores, 3.3GHz, DDR4, PCIE, HD, DP, Type-C, WIFI 6, a powerhouse of gaming tech in a tiny NUC Desktop. Take on any challenge!
Product Description:
PRODUCT HIGHLIGHT：
- Onboard high-end AMD Ryzen 5000 series 7nm Processor with powerful computing performance.
- Onboard AMD Radeon™ VEGA Graphics with fast graphics processing capabilities for gaming and 3D design.
- Support HDMI2.0, DP1.4 and Type-C for 3x4K@60Hz video display synchronously and a synchronously.
- Support 2*M.2 2280 NVME/PCIE3.0x4/SATA SSD+1*2.5'' SATA HDD/SSD.
- Support 2.5G&1G Dual RJ45 Lans+M.2 2230 2.4G/5G Dual band AC(AX) WiFi/BT.
- Onboard a powerful copper fan for heat dissipation, keep the computer stable working 7x24 hours.
- Support TPM2.0, PXE, RTC, Wake on LAN, Auto power on etc.
- Onboard AMD Radeon™ VEGA Graphics with fast graphics processing capabilities for gaming and 3D design.
- Support HDMI2.0, DP1.4 and Type-C for 3x4K@60Hz video display synchronously and a synchronously.
- Support 2*M.2 2280 NVME/PCIE3.0x4/SATA SSD+1*2.5'' SATA HDD/SSD.
- Support 2.5G&1G Dual RJ45 Lans+M.2 2230 2.4G/5G Dual band AC(AX) WiFi/BT.
- Onboard a powerful copper fan for heat dissipation, keep the computer stable working 7x24 hours.
- Support TPM2.0, PXE, RTC, Wake on LAN, Auto power on etc.
Check out the Awesome reviews in YouTube:
S600 Benchmark Testing
|
Basic Information:
|
|
|
CPU
|
AMD R3 5300U 5400U /R5 5500U /R7 5700U 5800U /R9 5900H 5900HX
|
|
TDP
|
45W
|
|
Level 3 Cache
|
Depend on CPU
|
|
Motherboard
|
144 x 141mm customized size
|
|
Code Name
|
AMD Zen 3
|
|
Memory
|
2 x SODIMM-DDR4 Slot, DDR4 UP TO 3200MHz, LPDDR4 UP TO 4266MHZ
|
|
OS
|
Windows10/Windows10 pro/Windows11/Ubuntu/Linux
|
|
Audio
|
Azalia Codec support 2.1 channel output
High Definition Audio Controller |
|
Network
|
1000Mb-RTL8111H + 2.5Gb-RTL 8125B
1000M-2500Mbps BaseT LAN |
|
Video
|
AMD Radeon Graphics
|
|
Input/output port
|
|
|
Switch
|
1 x Power On/Off Switch
|
|
Power
|
1 x 19V DC In
|
|
LED
|
1 x LED
|
|
USB
|
2 x USB3.2, 4X USB2.0
|
|
Display
|
1 x DP, 1 x HDMI, 1 x Type-C
|
|
LAN
|
2 x RJ45 Giga LAN
|
|
Audio
|
1 x Audio(MIC&SPK)
|
|
Storage
|
|
|
M.2
|
2 x M.2 slot for M.2 NGFF 22*80(Key M), up to 2TB(NVME/SATA), support 6Gb/s
|
|
SATA
|
1 x SATA3.0 slot for 9.5mm SATA HDD or SSD, up to 3TB, support 6Gb/s
|
|
Wi-Fi
|
|
|
Module
|
1 x M.2 NGFF 2230(Key E) slot for Wi-Fi module(2.4G or 5G Wi-Fi B/G/N/AC or BT)
|
|
Antenna
|
2 x inner RF cables
|
|
Power and Working Environment
|
|
|
Input
|
DC100-240V AC/50-60Hz
|
|
Output
|
DC +12V~+19V,19V/6.32A, 5.5/2.5mm
DC +12V~+19V, 19V/4.74A, 5.5/2.5mm |
|
Operating Temperature
|
-10/60 Centigrade
|
|
Storage Temperature
|
-20/+70 Centigrade
|
|
Relative Humidity
|
0%~90% (non-condensing)
|
|
Product Dimension & Details
|
|
|
Size
|
149*145*40mm
|
|
Weight
|
Net 0.6kg, Gross 1.5KG
|
|
Shell
|
Aluminum Alloy+ABS
|
|
Cooling Mode
|
Copper Cooling Fan
|
|
Functions
|
TPM2.0, PXE, RTC, Wake on LAN, Auto power on
|
|
Package Content
|
|
|
Standard
|
1xMini PC, 1xPower Adapter, 1xPower Cord, 1xScrews Bag
|
|
Optional
|
Wi-Fi antennas, 1xHDMI cable, 1xUser Manual
|
