XL6019 (XL6009 Upgrade) DC-DC Boost Converter

XL6019, an upgraded version of the XL6009 DC-DC boost converter power supply module. With an adjustable input range of 3-35V and an output range of 5-40V, it is perfect for regulating voltages up to 5A. Upgrade your power supply with ease and efficiency with the XL6019.

The XL6019 regulator is a wide input range, current mode, DC/DC converter which is
capable of generating either positive or negative output voltages. It can be configured
as either a boost, flyback, SEPIC or inverting converter. The XL6019 built in N-channel
power MOSFET and fixed frequency oscillator, current-mode architecture results in
stable operation over a wide range of supply and output voltages.
The XL6019 regulator is special design for portable electronic equipment applications.

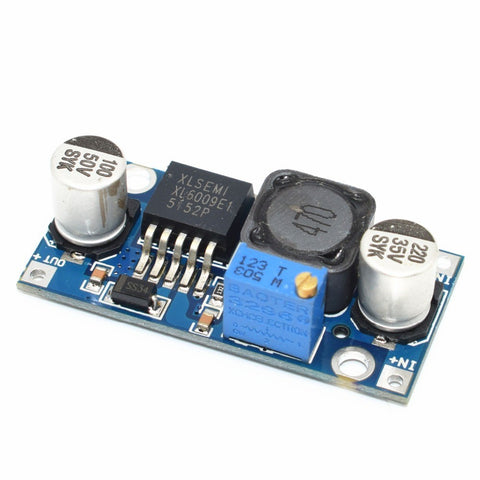

Note: Actual Circuit board contains XL6019E1

Specification:

• Modular Nature: Non-isolated boost ( BOOST )
• Rectification Method: Asynchronous rectification
• Input Range Limit value: 3-40V, recommended value 3V-35V
• Output Range Limit value: 5-45V, recommended value 5V-40V (by rotating potentiometer)
• Input Current Limit value: 0-5A, recommended value 0-3A
• Conversion efficiency up to 94%
• On-off level: 220KHz, the second generation switching power supply technology
• Output Ripple: less than 100mV
• Load Regulation: 0.5%
• Voltage regulation: 0.5%
• Operating temperature Limit value: -40°C~+150°C, recommended value 20°C~+85°C
• Reverse Polarity Protection: Input 40V anti-reverse polarity protection

Application range:
This module can be used in the boost field where the output voltage is higher than the input voltage, such as batteries, power transformers, DIY adjustable regulated power supplies, 24V car notebook power supplies, industrial equipment step-down, 9 to 12V, 12V to 18V, 18V to 24V, etc.

Precautions
1. It is recommended to use the current within 2.5A for long-term work, and add the
Heater (output above 10W); since it is a boost module, in order to ensure stable output
set, please keep a small 1.5V voltage drop.

Package include:

• 1 x XL6019 Boost DC-DC converter module
