XL6009 DC-DC Boost Converter Power Supply Module Adjustable 4.5-32V to 5-52V 4A Voltage Regulator - MackTechBiz

₱150.00
XL6009 DC-DC Buck Boost Converter with Voltmeter XL6009 DC-DC Boost Converter equipped with an adjustable 4.5-32V input and allows for a wide output range of 5-52V 4 Ampere, making it a versatile power supply module. This voltage regulator is essential for efficient and reliable power delivery in a variety of...
Title
-
+
₱90.00

Electronics

XL6009 DC-DC Buck Boost Converter with Voltmeter

XL6009 DC-DC Boost Converter equipped with an adjustable 4.5-32V input and allows for a wide output range of 5-52V 4 Ampere, making it a versatile power supply module. This voltage regulator is essential for efficient and reliable power delivery in a variety of applications.

The XL6009 regulator is a wide input range, current mode, DC/DC converter which is capable of generating either positive or negative output voltages. It can be configured as either a boost, flyback, SEPIC or inverting converter. The XL6009 built in N-channel power MOSFET and fixed frequency oscillator, current-mode architecture results in stable operation over a wide range of supply and output voltages.
The XL6009 regulator is special design for portable electronic equipment applications.

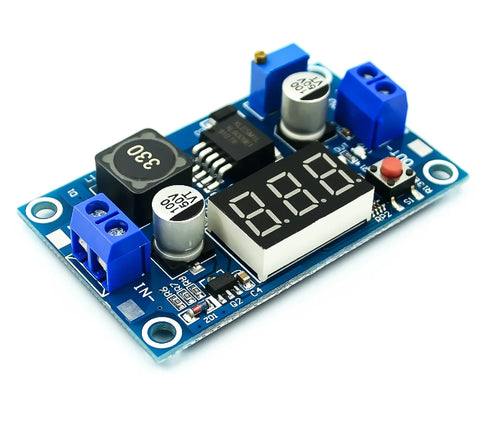

XL6009 DC-DC Boost Converter Power Supply Module Adjustable - MackTechBiz

XL6009 DC-DC Boost Converter Power Supply Module Adjustable - MackTechBiz

XL6009 DC-DC Boost Converter Power Supply Module Adjustable - MackTechBiz

Parameter Description:

  • Ultra-wide input voltage 3V~32V (the boost below 5V works normally, but the digital tube does not work), the working voltage range is 5~32V;
  • Ultra-wide boost output voltage 5V~40V;
  • Built-in 4A high-efficiency MOSFET switch, making the efficiency up to 94%; (LM2577 current is only 3A)
  • The ultra-high switching frequency is 400KHz, which can achieve very good results with small-capacity filter capacitors, with smaller ripple and smaller volume. (LM2577 frequency is only 50KHz)
  • With input display indicator and output display indicator, the IN indicator is on when the digital tube displays the input voltage, and the OUT indicator is on when the digital tube displays the output voltage


Wiring Instructions:

  • IN+: Input positive
  • IN-: Input negative pole
  • OUT+: output positive
  • OUT-: output negative pole



Technical Parameter:

  • Module nature: non-isolated boost (BOOST)
  • Rectification method: asynchronous rectification
  • Input current: 4A, no-load 18mA (5V input, 8V output, no-load less than 18mA. The higher the voltage, the greater the load current.)
  • Conversion efficiency: <94% (the greater the pressure difference, the lower the efficiency)
  • Switching frequency: 400KHz
  • Output ripple: 50mV (the higher the voltage, the bigger the current, the bigger the ripple)
  • Load Regulation: ±0.5%
  • Voltage regulation rate: ±0.5%
  • Working temperature: -40℃~ +85℃



Application range:
This module can be used in the boost field where the output voltage is higher than the input voltage, such as batteries, power transformers, DIY adjustable regulated power supplies, 24V car notebook power supplies, industrial equipment step-down, 9 to 12V, 12V to 18V, 18V to 24V, etc.



Precautions
1. It is recommended to use the current within 2.5A for long-term work, and add the
Heater (output above 10W); since it is a boost module, in order to ensure stable output
set, please keep a small 1.5V voltage drop.



Package include:

  • 1 x XL6009 Buck Boost Module DC-DC converter LED Display Voltmeter
