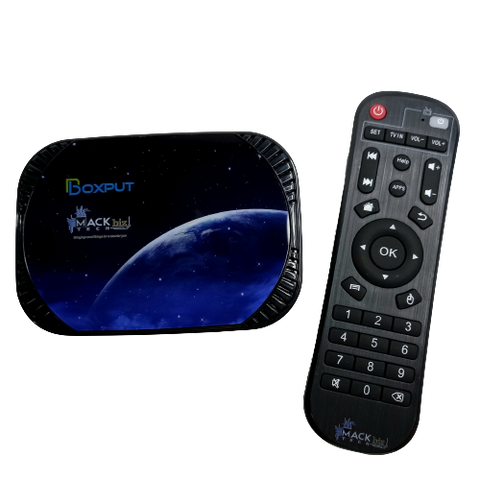

Amlogic S905x4 Android 11 TV Box Quad Core Dual WIFI 2.4G/5G DDR3 2GB 4GB ROM 64GB USB3.0 8K

Amlogic S905x4 Android 11 TV Box Quad Core Dual WIFI 2.4G/5G DDR3 2GB 4GB ROM 64GB USB3.0 8K CPU: Amlogic S905X4 Quad Core ARM Cortex A55;GPU: G3 MP2 GPU processor;OS: Android 11.0;Memory: DDR3 2/4GB, eMMC 16/32/64GB/128GBSupport: AV1 , H.265, 8K 24fps, 4K 60fps, HD 2.1, USB3.0;Support 10/100M/1000M Ethernet, 2.4G 5G...
RAM
ROM
Plug Type
-
+
₱3,368.99

Set top box

Amlogic S905x4 Android 11 TV Box Quad Core Dual WIFI 2.4G/5G DDR3 2GB 4GB ROM 64GB USB3.0 8K


CPU: Amlogic S905X4 Quad Core ARM Cortex A55;
GPU: G3 MP2 GPU processor;
OS: Android 11.0;
Memory: DDR3 2/4GB, eMMC 16/32/64GB/128GB
Support: AV1 , H.265, 8K 24fps, 4K 60fps, HD 2.1, USB3.0;
Support 10/100M/1000M Ethernet, 2.4G 5G Dual Wifi, BT4.1 ;
Support: 1*USB3.0, 1*USB2.0;
Support: Firmware Wireless Upgrade (OTA).

There are 4 Options:

A: 4G+32G+Dual Wifi+BT4.1+100M
B: 4G+64G+Dual Wifi+BT4.1+100M
C: 4G+32G+Dual Wifi+BT4.1+1000M

D: 4G+64G+Dual Wifi+BT4.1+1000M



Package Include:
1 x TV Box
1 x Remote control
1 x Power Supply
1 x HD Cable
1 x User Manual


CPU Amlogic S905X4 64-bit quad core ARM® Cortex™ A55
GPU G31™ MP2 GPU processor
Memory DDR3: 4GB
Flash eMMC:32GB(Option: 64GB )
WiFi IEEE 802.11 ac/b/g/n ;  2.4G / 5G
BT  BT ;  Support Voice Remote
Moudle Plastic : Black  Color
I/O 1*HDMI HDMI 2.1 ,Support HDMI CEC, Dynamic HDR and and 8Kx4K@24 max resolution output
1*AV OUT 480i/576i standard definition output
2*USB 1 * USB 3.0 ; 1*USB 2.0
1*IR Reciver Remote Reciver Connect
1*RJ45 Ethernet Interface;Support 10/100/1000M
1*TF CARD Support 4GB/8GB/16GB/32GB/64GB
Power DC 5V/2A;
Software
OS Android 11.0
Video - Amlogic Video Engine (AVE) with dedicated hardware decoders and encoders
- Support multi-video decoder up to 4x1080P 60fps
- Supports multiple “secured” video decoding sessions and simultaneous decoding and encoding
- Video/Picture Decoding/AV1 MP-10 L5.1 4Kx2K 60fps
-  VP9 Profile-2 up to 8Kx4K 24 fps
-  H.265 HEVC MP-10 L5.1 up to 8Kx4K 24 fps
-  AVS2-P2 Profile up to 8Kx4K 24 fps
-  H.264 AVC HP L5.1 up to 4Kx2K 30fps
-  MPEG-4 ASP L5 up to 1080P 60fps (ISO-14496)
-  WMV/VC-1 SP/MP/AP up to 1080P 60fps
-  AVS-P16(AVS+) /AVS-P2 JiZhun Profile up to 1080P 60fps
-  MPEG-2 MP/HL up to 1080P 60fps (ISO-13818)
-  MPEG-1 MP/HL up to 1080P 60fps (ISO-11172)
-  RealVideo 8/9/10 up to 1080P 60fps
-  Multiple language and multiple format sub-title video support
-  MJPEG and JPEG unlimited pixel resolution decoding (ISO/IEC-10918)
-  Supports JPEG thumbnail, scaling, rotation and transition effects
-  Supports *.mkv,*.wmv,*.mpg, *.mpeg, *.dat, *.avi, *.mov, *.iso, *.mp4, *.rm and *.jpg file formats
Audio Supports MP3, AAC, WMA, RM, FLAC, Ogg and programmable with 7.1/5.1 down-mixing
Low-power VAD
Built-in serial digital audio SPDIF/IEC958 input/output and PCM input/output
3 built-in TDM/PCM/I2S ports with TDM/PCM mode up to 384kHz x 32bits x 16ch or 96kHz x 32bits x 32ch and I2S mode up to 384kHz x 32bits x 16ch
Digital microphone PDM input with programmable CIC, LPF & HPF, support up to 8 DMICs
Built-in stereo audio DAC
Supports concurrent dual audio stereo channel output with combination of analog+PCM or I2S+PCM
Image HD JPEG,BMP,GIF,PNG,TIF
Language English French German Spanish Italian etc multilateral languages
Appliactions
Online Browse all video websites,support Netflix,Hulu,Flixster, Youtube, etc.
Apps Apps download freely form android market,amazon app store etc.
Medium Local Media playback,Support HDD, U Disck ,TF Card .
Talk online Support  SKYPE video  call ,MSN , facebook ,twitter ,QQ  etc
Others Support Email,office suit etc.
Support DLNA function
Support 2.4G wireless mouse/keyboard
Packing Product dimension 105*20
Qty per unit packing 1pc
Unit packing: (LxWxH) (MM)
Unit packing (G.W.) 0.4KG
Qty per export carton 20PCS
Export carton (WxHxL) (MM)
Export carton (G.W.) 8KG
Accessories :
1. HDMI cable  *1
2. IR Remote *1
3. User Manual *1
4. Package box  *1
5. Power adapter  *1




TV Box Product Usage
