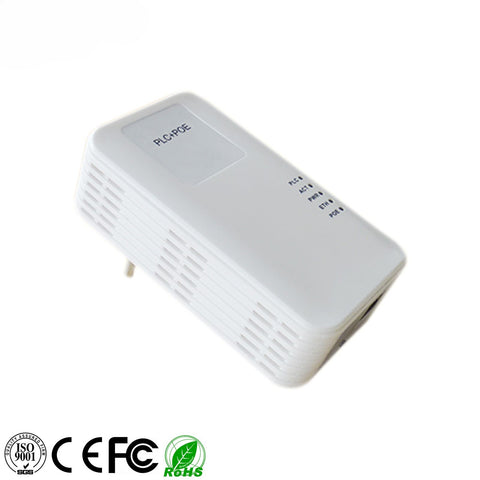

Smart Link Homeplug AV2 1200Mbps over CAT6 PoE Powerline Adapter
Smart Link Homeplug AV2 1200Mbps over CAT6 PoE Powerline Adapter
Overview
The LNK-1200MH-POE Smart Link HomePlug AV2 1200Mbps Ethernet Adapter embarks on a concept of No New Wires data communications, and it transforms your in-house powerline into a networking infrastructure. It provides SmartLink Plus coupling to the Line-Neutral pair and the Line-Ground pair of the AC mains. It successfully reduce "dead spot", increase throughput and increase network coverage within a home. Surf the Internet and share data at the speed up to 1Gbps PHY rates through powerline, And Built-in PoE Injector to provide 55V/48V classification power via CAT5E / CAT6.
LNK-1200MH-POE Smart Link HomePlugAV2 engine is a Qualcomm Atheros QCA7500 chip set , It features faster processing power, Fast Ethernet host interfaces and an enhanced analog front end. The solution is compliance with IEEE1901, Homeplug AV and Homeplug AV2, hence allowing hassle free compatibility with existing Homeplug AV2 devices and other suppliers of IEEE1901 PLC (Powerline Line Communication) devices and IEEE 802.3at /af compliant Midspan or Endpoint (Option) PSE.
Features
· High-Speed powerline adapter with Ethernet interface for fast data transfer over the existing household power supply
· The high-speed transfer rates of 1200Mbps even make it possible to transmit video in DVD quality
· No need new wires and use at any power socket with up to 500 meters
· Simple plug and easy to install fully compliant with IEEE802.3/802.3u,IEEE802.3at/af HomePlugAV/HomePlugAV2 standard
· Provide DC55V power for the PoE PD over CAT5e / CAT6
· Provide 128-bit AES link encryption for Powerline networks
· Up to 1200Mbps data rate on Powerline networking
· Allow user to connect PCs and other devices conveniently via any power outlet at home
· IEEE 802.3at /af compliant Midspan or Endpoint (Option) PSE
Technical Indexes
|
Parameter |
Specification |
|
Transfer rate (PHY): |
1200Mbps |
|
Range: |
up to 500m |
|
Frequency Band |
2~68 MHz |
|
Access-Method: |
OFDM |
|
Powerline Connector: |
EU, UK, AU and US |
|
Network Connector: |
1x RJ45 10/100Base-TX |
|
Encoding: |
128Bit AES-Encryption with key management |
|
LED-Displays: |
PLC (PLC signal light) |
|
ACT |
|
|
PWR (power light) |
|
|
ETH (Ethernet light) |
|
|
PoE (POE light) |
|
|
Power supply: |
100~240 VAC, 50/60 Hz |
|
Power over Ethernet: |
PoE function gets solved on the veins 4,5 (+) and 7,8(-), no data pairs, max. Output power 55VDC 30W/48VDC, 15.4W |
|
Power consumption: |
3.9 watts without PoE terminal, 35 watts maximum |
|
Supported Standards: |
IEEE 802.3 IEEE 802.3x IEEE 802.3u IEEE 802.3af IEEE 802.3at Auto MDI / X HomePlug AV2 |
|
Operating Systems: |
Windows® XP32bit, Windows® Vista 32/64bit, Windows® 7 32/64bit, Linux®, Mac OS® X and all TCP/IP Operating Systems |
|
Housing: |
Plastic housing |
|
Environment: |
Temperature in use: 0 ~ 70 °C |
|
Humidity in use: 10% ~ 85% (non condensing) |
|
|
Temperature storage: -20 ~ 70 °C |
|
|
Humidity storage: 5% ~ 90% (non condensing) |
|
|
Mark: |
CE |
|
Dimension: |
105 x 60 x 37 mm (LxWxH) |
|
Weight: |
180 grams (only adapter) |
|
500 grams (incl. accessories and packaging) |
|
|
Package contents: |
1x PoE Powerline Adapter |
|
1x RJ45 patch cable 1.5m |
|
|
1x CD-ROM with manual & software |
