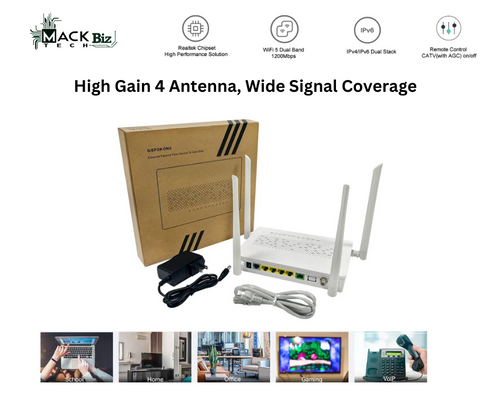

XPON (GPON/EPON) ONU, 4GE PON CATV Dual-Band WIFI



XPON Product Overview:

The ONU product is an essential terminal equipment in the xPON series that fully complies with the ITU-G.984.1/2/3/4 standard. It also meets the energy-saving protocol of G.987.3. Based on reliable and cost-effective GPON technology, it incorporates the high-performance xPON REALTEK chipset, ensuring a high level of reliability, easy management, flexible configuration, and robustness. Additionally, its quality of service (Qos) guarantee makes it a dependable choice. The ONU supports simultaneous connectivity with both WIFI4 (IEEE802.11b/g/n) and WIFI5 (IEEE802.11ac) networks, making it convenient for users to connect to the internet through the provided WEB system. It also features automatic G/E PON switching and includes a RJ11 interface for VOIP applications and an RF signal for TV.



XPON Product Features:

  • Comply fully with ITU-G.984.1/2/3/4 standard and G.987.3 protocol.
  • Support downlink 2.488 Gbits/s rate and uplink 1.244 Gbits/s rate.
  • Support bidirectional FEC and RS(255,239) FEC CODEC.
  • Support 32 TCONT and 32 GEMPORT.
  • Support AES128 decryption function of G.984 standard.
  • Support SBA and DBA dynamically broadband allocation.
  • Support the PLOAM function of G.984 standard.
  • Support Dying-Gasp check and report.
  • Support synchronous Ethernet.
  • Good interworking with the OLT from different manufacturers such as Huawei, ZTE, Cortina etc.
  • Down-link LAN ports: 4*10/100/1000M with auto-negotiation.
  • Support the rogue ONU alarm function.
  • Support VLAN function.
  • Operation mode: HGU.
  • Support IEEE802.11b/g/n and IEEE802.11ac standard for WIFI.
  • Antennas gain: 5DBi with external.
  • Support: 300Mbps PHY rate IEEE802.11n, 866Mbps PHY rate IEEE802.11ac.
  • Support multiply SSID.
  • Multiple encryption methods:WFA、WPA、WPA2、WAPI.
  • One port for VOIP support SIP protocol optional.
  • Comply fully with IEEE802.3ah standard and CTC-3.0 specification.
  • One RF port for TV application.



Basic Characteristics



Technical Parameters Description
Basic Characteristics
Up-link interface
(XPON use the GPON spec)
1 GPON interface,SC single mode single fiber
RX 2.488 Gbits/s rate and TX 1.244 Gbits/s rate
Fiber type:SC/APC
Optical power:0~4 dBm
Sensitivity:-28 dBm
safety: ONU authentication mechanism
Wavelength(nm) TX 1310nm,RX 1490nm
Fiber Connector SC/UPC or SC/APC connector
Down-link data
interface
4*10/100/1000M auto-negotiation Ethernet
interface, RJ45 interface
Indicator LED 11 pcs,refer to NO.6 definition of indicator LED
DC supply interface input+12V 1A,footprint:DC0005 ø2.1MM
Power ≤7W
Operating temperature -5~+55℃
Humidity 10~85%(non-condensation)
Storage temperature -30~+70℃
Dimension(MM) 185*125*32mm(mainframe)
Weight 0.5Kg(mainframe)
Thermal Overload
Shutdown
If the die temperature exceeds the maximum junction temperature threshold, the device will shut itself down.
WIFI
Antenna 2T2R Mode; gain:5dBi
Rate 300Mbps IEEE802.11n 866 Mbps IEEE802.11ac
Number of Channel : WIFI4- 13 ; WIFI5 - 12
Encryption Methods WFA、WPA、WPA2、WAPI
Tx Power 17dBm for 2.4GHz ;19dBm for 5GHz
Rx Sensitivity WIFI4:-59dBm @ channel 11 MCS7;
WIFI5:-50dBm @ channel 155 AC80;
WPS Function Supported
VOIP
Voltage and Current
Monitoring
The continuously monitors the TIP, RING, and  battery voltages and currents via an on-chip Monitor ADC
Protocol Protocol :  SIP;
Codec type selection : G722,G729,,G711A,G711U,
FAX: T38;
CATV
Optical wavelength 1100~1650nm(Dual Fiber, NO PWDM)
1540~1560nm(Single Fiber, internal PWDM  component)
Optical input range 0~-15 DBm
Optical return loss ≥45 DB
Bandwidth 45~1000 MHz
Flatness 士 1 DB
RF output level ≥72 dBuv
AGC control range 0~-14 DBm
RF Output return loss ≥14 DB
Output impedance 75Ω
CNR ≥50 DB
CTB ≥60 DB
CSO ≥60 DB





XPON_GPONEPON_ONU_4GEPONCATVDual-BandWIFI-MackTechBiz



XPON_GPONEPON_ONU_4GEPONCATVDual-BandWIFI-MackTechBiz



XPON_GPONEPON_ONU_4GEPONCATVDual-BandWIFI-MackTechBiz
