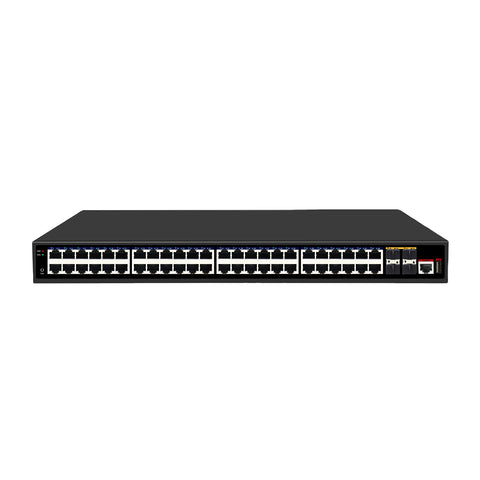

48-Port 10/100/1000T PoE + 4-Port 10G SFP+ L3 Managed Switch
Overview
This 48-port Gigabit Layer 3 managed Ethernet switch, support 48 * 10/100/1000 PoE adaptive electrical ports, 4 * 10 Gb SFP+ ports, 1 console port, and 1 USB serial port. Perfect security control strategy and CPU protect policy improve fault tolerance and ensure stable operation of the network and load balancing of the interconnection; The device supports automatic DoS attack defense and SNMP, IEEE 802.1, STP, RSTP, Link aggregation, and other functions. Advanced security functions and advanced quality of service (QoS), can be used as core layer, distribution layer or access layer switch with high density port, switch stacking and easy management, are ideal for various commercial network applications.
Features
l 48x 10/100/1000M RJ45(PoE 1- 48) + 4x 10G SFP+
l L3 management, support DHCP Server, QoS, ACL, SNMP V1/V2/V3, IGMP Snooping v1/v2
l Support STP/RSTP/MSTP (ERPS), Support loop detection and self-healing, support remote loopback monitoring and control(802.3ah OAM; Support IPV4/IPV6
l Support multiple VLAN division, MAC VLAN, Protocol VLAN, Private VLAN;
l Support IP address + MAC address + VLAN + Port binding, DHCP Snooping, support IP source and DAI protection;
l Lightning Protection: Common mode ≥6 KV, static: contact ≥6KV, air ≥8KV
Technical Indexes
|
Input/output Port |
|
|
AC INPUT |
AC100-240V,50/60Hz |
|
Ethernet Port |
48 * 10/100/1000Mbps RJ45 Port PoE 4 * 10G SFP Port 1 * RJ45 Console Port 1 * USB Port |
|
Performance |
|
|
Bandwidth |
176Gbps |
|
Packet Buffer Memory |
131Mpps |
|
DDR SDRAM |
4G |
|
Flash Memory |
256M |
|
64M |
|
|
MAC Address |
32K |
|
Jumbo frame |
12Kbytes |
|
VLANs |
4096 |
|
Standard |
|
|
Network Protocols |
IEEE 802.3:Ethernet MAC Protocol IEEE 802.3i:10BASE-T Ethernet IEEE 802.3u:100BASE-TX Fast Ethernet IEEE 802.3ab:1000BASE-T Gigabit Ethernet IEEE 802.3z:1000BASE-X Gigabit Ethernet (optical fiber) IEEE 802.3ae:10G Ethernet (optical fiber) IEEE 802.3az:Energy Efficient Ethernet IEEE 802.3ad:Standard method for performing link aggregation IEEE 802.3x:Flow control IEEE 802.1ab: LLDP/LLDP-MED (Link Layer Discovery Protocol) IEEE 802.1p:LAN Layer QoS/CoS Protocol Traffic Prioritization (Multicast filtering function) IEEE 802.1q:VLAN Bridge Operation IEEE 802.1x:Client/Server Access Control and Authentication Protocol IEEE 802.1d:STP IEEE 802.1s:MSTP IEEE 802.1w:RSTP |
|
Industry Standard |
EMI: FCC Part 15 CISPR (EN55032) class A EMS: EN61000-4-2 (ESD); EN61000-4-4 (EFT); EN61000-4-5 (Surge) Shock: IEC 60068-2-27 Free Fall: IEC 60068-2-32 Vibration: IEC 60068-2-6 |
|
Network Media |
10BASE-T: Cat3; 4; 5 or above UTP(≤100 M) 100BASE-TX: Cat5 or above UTP (≤100 M) 1000BASE-TX: Cat5 or above UTP (≤100 M) Multi-mode Fiber: 50/125; 62.5/125; 100/140um Single-mode Fiber: 8/125; 8.7/125; 9/125; 10/125um |
|
Certification |
|
|
Safety Certificate |
CE; FCC; RoHS |
|
Environmental standards |
|
|
Working Environment |
Operating temperature: -10~50°C Storage temperature: -40~70°C Operating Humidity: 10%~90%, No condensation Storage Humidity: 5%~90%, No condensation Working height: Up to 10,000 feet Storage height: Up to 10,000 feet |
|
Function indication |
|
|
Indicator Light |
PWR(Power indicator), SYS(System lights), Link/ACT(Link light/data light) |
|
Physical specifications |
|
|
Product Information |
Product Dimensions: 440*336*44.5mm Package Dimensions: 570*450*90mm Product N.W: 5.5KG Product G.W: 6KG |
|
Packing Information |
Carton Dimensions: 600*495*435mm Packing Quantity: 4PCS |
|
Voltage |
Input Voltage: AC100-240V/50-60Hz |
|
Packing list |
1. Ethernet switch: 1 Set 2. Instruction manual: 1 PCS 3. Certificate, warranty card: 1 PCS 4. Power cord: 1PCS 5. Serial cable: 1PCS 6. Rack ear: 1 Pairs 7. Operation manual CD: 1 PCS |
